IR-Filter
YQ-IR-110A

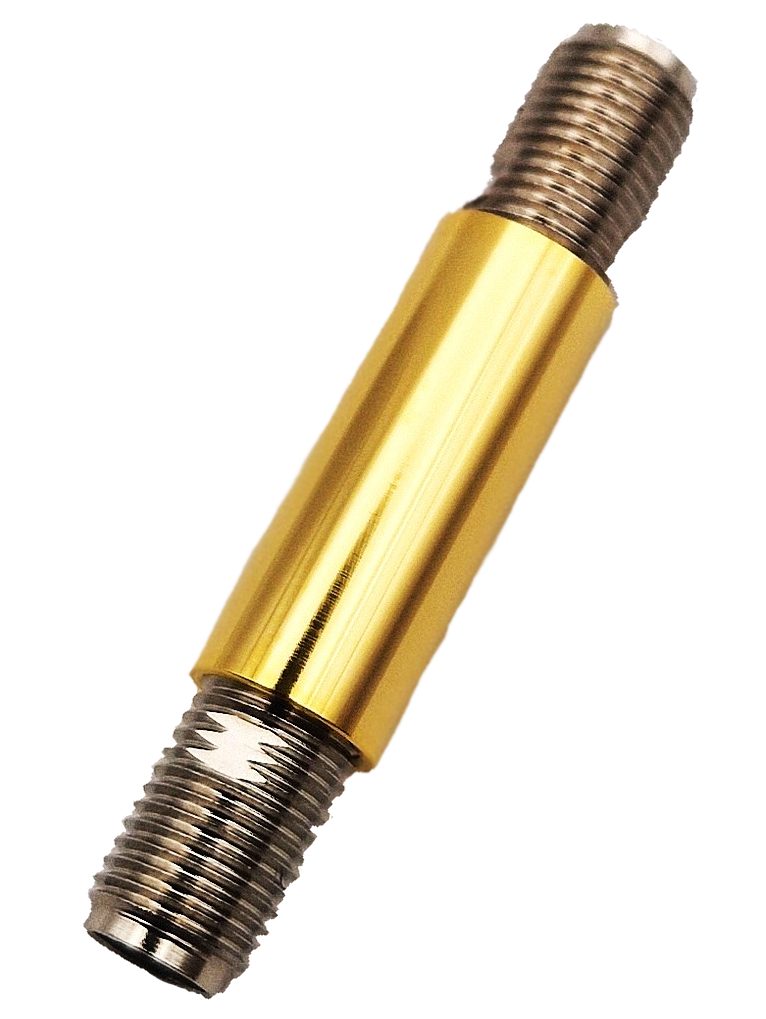

IR-Filter - Infrared-Filter for Microwave Signals
In production - Contact us to order
This reliable infrared filter protects the coherence of your qubits by blocking high-energy radiation. Our filters are manufactured using a simple, patent-pending process that ensures consistent transmission and reflection parameters across multiple units.
For versions with different attenuation levels or connector interfaces, please contact YQuantum.
Key performance metrics are:
- Reliable, patented-pending manufacturing process
- 2.5 dB loss at 6 GHz
- High return loss > 20.0 dB
- Gold-plated OFHC coper housing
- SMA connector interface
- 7.5mm in diameter
Downloads:

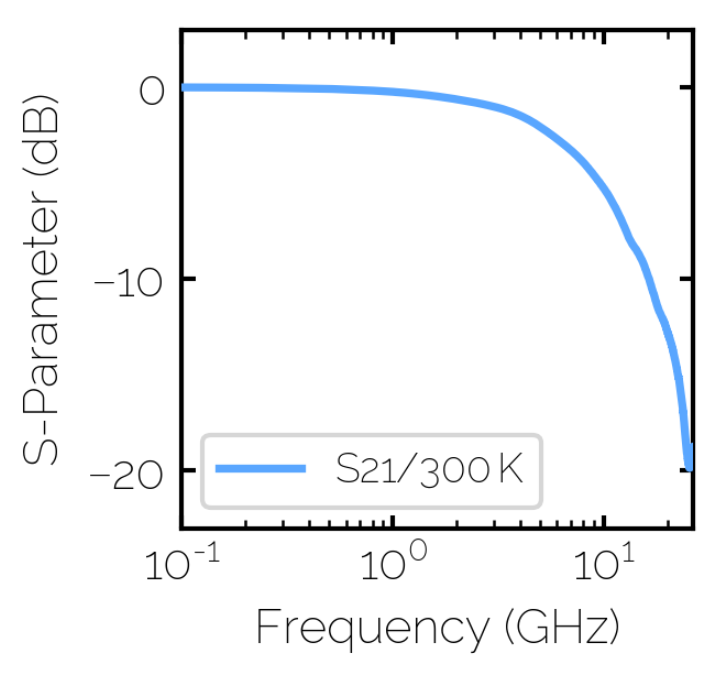

Typical Performance
IR-Filter Array
YQ-IRA-XLDA

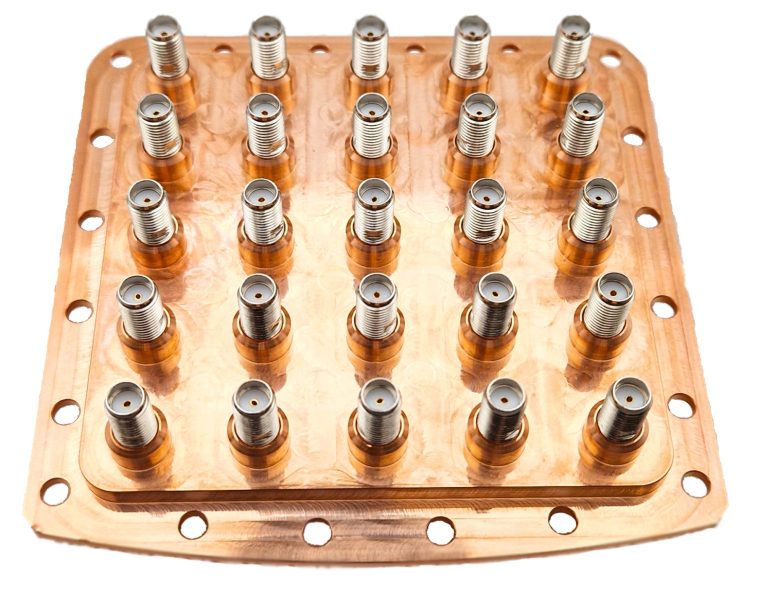

IR-Filter Array - Integrated Light-tight Cable Feedthrough
In production - Contact us to order
We offer an integrated version of our IR-filters built directly into the cable feedthrough of the cryostat. Machined from a single piece of copper, this solution provides maximum light-tightness and compact integration of our IR-filters.
For custom feedthrough configurations or connector interfaces, please contact YQuantum directly.
Key performance metrics are:
- Fully light-tight cable feedthrough with integrated IR-filters
- Manufactured from a single piece of OFHC copper
- Suitable for Bluefors XLD dilution system
- Reliable, patented manufacturing process
- For more details on IR-filters see YQ-IR-110A
Downloads:
OFHC copper with optional gold-plating.
