Quantum Packaging
YQ-QP-20A
Quantum Device Packaging - 20 RF-Port Sample Holder
In production - Contact us to order
We offer a highly efficient quantum packaging solution, optimized for superior magnetic shielding, light-tightness, and thermalization.
Featuring 20 RF-ports and a 10×10 mm cutout for your quantum device, this sample holder is ready to make the difference for your experiments.
Key Performance Metrics:
- 20 RF-ports with SMP connectors
- Fully light-tight cable feedthroughs and chip enclosure

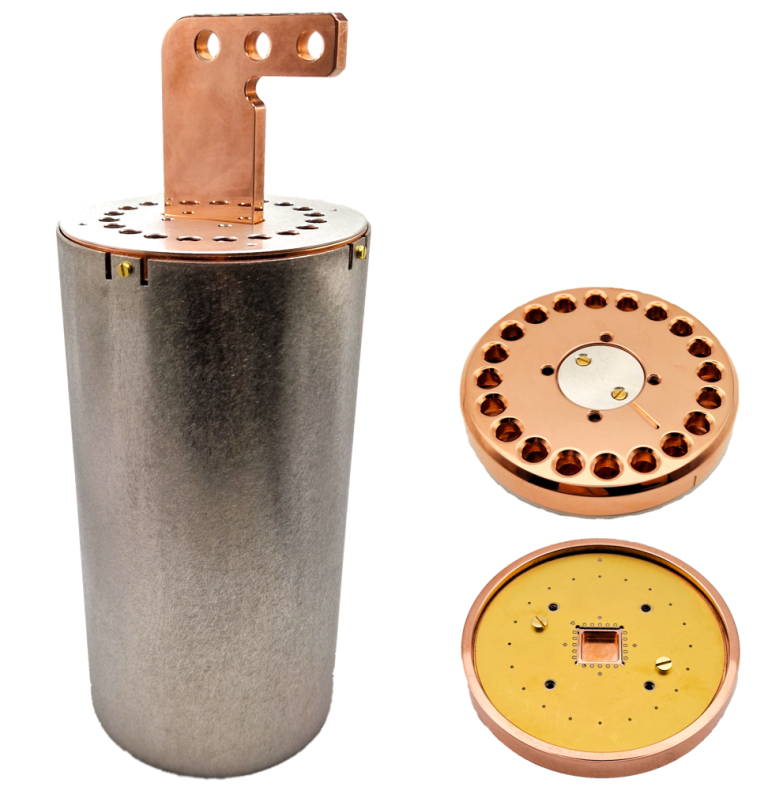

- Mu-metal and Aluminum shields (with flange)

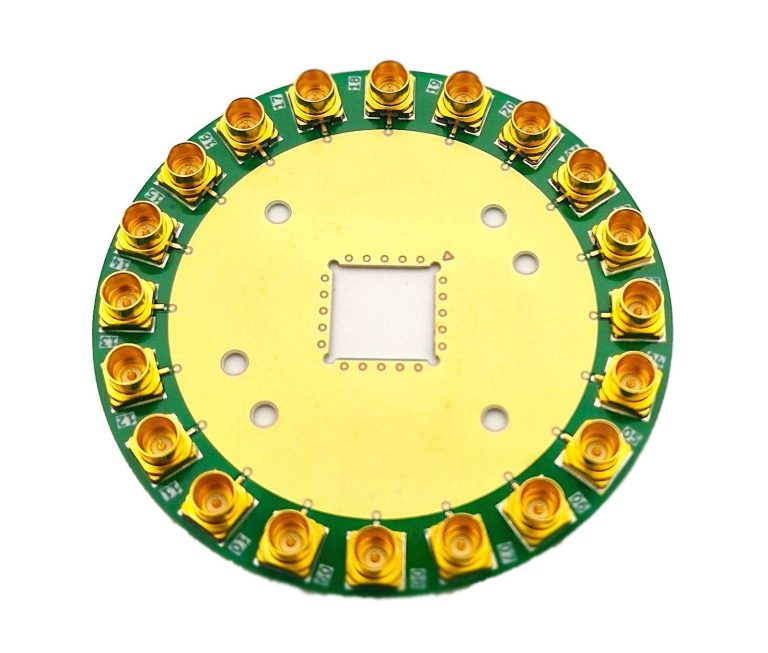

- RF-PCB with a 10×10 mm chip cutout
- Low-loss, low-crosstalk 4-layer RF-PCB
- Non-magnetic components only (PCB, connectors, etc.)
- Sample box resonance frequencies above 15 GHz
- Direct thermalization using OFHC copper parts
- Sample holder mounting brackets for different cryostats available
Downloads:
More technical specs, data, and drawings available on request - feel free to get in touch.
